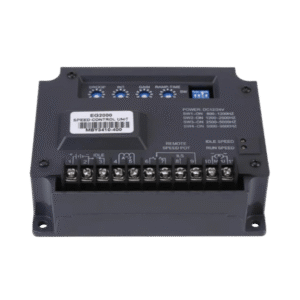

EG2000 Electronic Engine Speed Governor Controller

Description

• Click Here To Download EG2000 User Manual

  📝 Description:
  The EG2000 Electronic Engine Speed Governor Controller is a high-performance digital governor module designed to maintain precise engine speed and stable generator frequency. With advanced microprocessor technology, it provides fast dynamic response, smooth load acceptance, and excellent stability across varying operating conditions. Widely used in diesel and gas generator sets, the EG2000 ensures reliable operation, improved fuel efficiency, and extended engine life.

  📖 Technical Details:

  ⚡ Model: EG2000
  🔋 Type: Electronic Engine Speed Governor Controller
  ⚙️ Control Function: Regulates engine speed and generator frequency

  📊 Features:

  • Isochronous and droop control modes

  • Fast dynamic response under load changes

  • Adjustable gain, stability, and speed parameters

  • Idle speed control and soft load/unload functions

  • Compatible with multiple actuators and engines

  🔧 Power Supply: 12V / 24V DC nominal
  ⚡ Frequency Range: 50 Hz / 60 Hz systems
  📈 Speed Regulation Accuracy: ±0.25%
  🌡️ Operating Temperature: -40°C to +85°C
  🛠️ Protection: Reverse polarity, overvoltage, and short-circuit protected

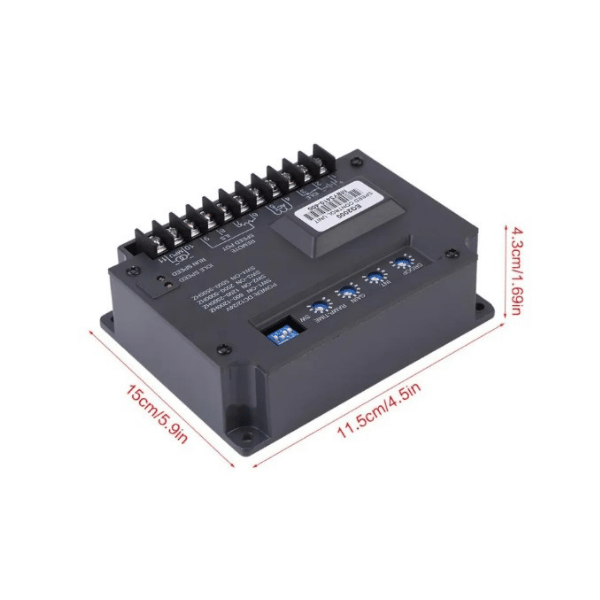

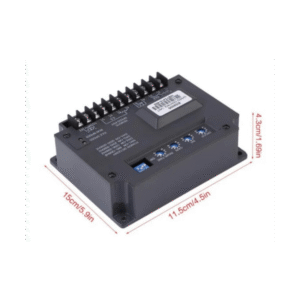

  📐 Mounting: Chassis/panel mount, compact and robust design
  🏅 Compatibility: Suitable for Cummins, Perkins, Stamford, Deutz, and other popular genset brands
