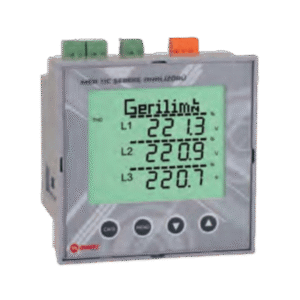

MEA-11C Network Analyzer with RS485 Communication

Description

📝 Description:
The MEA-11C Network Analyzer is a high-performance, microprocessor-based measuring device designed for real-time monitoring of electrical parameters in single and three-phase systems. Featuring RS485 (Modbus RTU) communication, it enables seamless integration with SCADA, PLC, and energy management systems. With True RMS accuracy, multiple parameter display, and durable panel-mount design, it is a reliable solution for industrial, commercial, and generator applications.

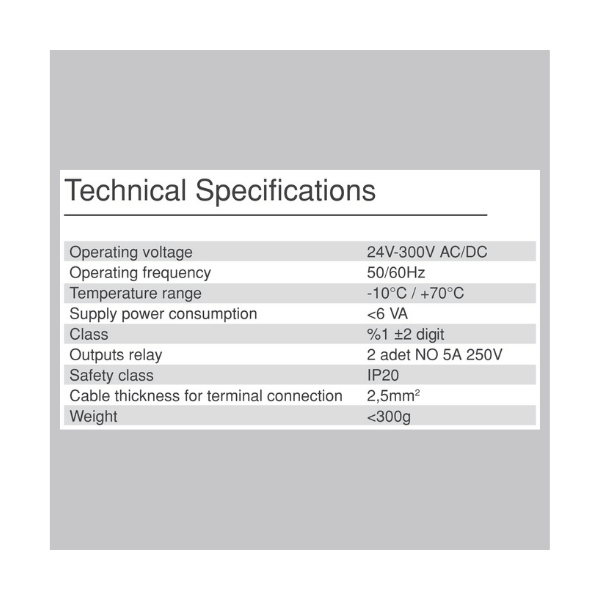

📖 Technical Details:

• ⚡ Model: MEA-11C

• 🔋 Type: Digital Network Analyzer

• 📊 Measured Parameters:

  • Phase & line voltages (True RMS)

  • Phase & line currents

  • Active, reactive, and apparent power

  • Power factor (per phase & total)

  • Frequency (Hz)

  • Energy (kWh, kvarh, kVAh)

• ⚡ Voltage Input Range: 50–500V AC (3-phase)

• 🔋 Current Input: via external CT (1A/5A selectable)

• 🎚️ Frequency Range: 45–65 Hz

• 📈 Accuracy: Voltage/Current ±0.5%, Frequency ±0.1 Hz

• 🔧 Display: High-contrast LED/LCD digital display

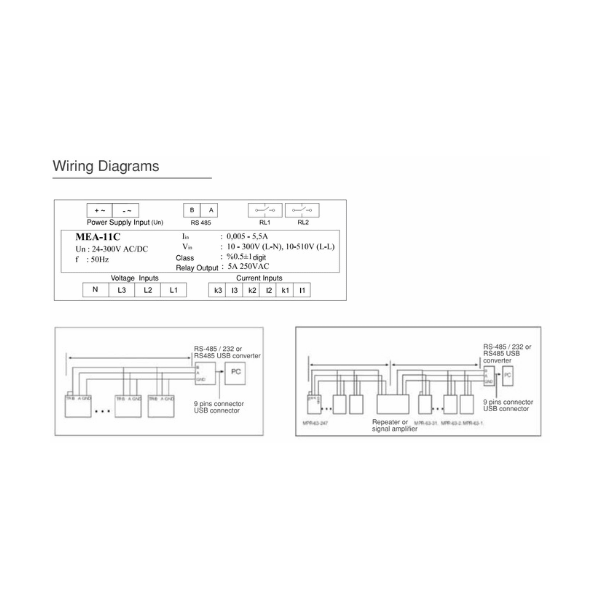

• 🔌 Communication: RS485 Modbus RTU protocol

• 🛠️ Auxiliary Power Supply: 85–270V AC/DC

• 🌡️ Operating Temperature: -20°C to +70°C

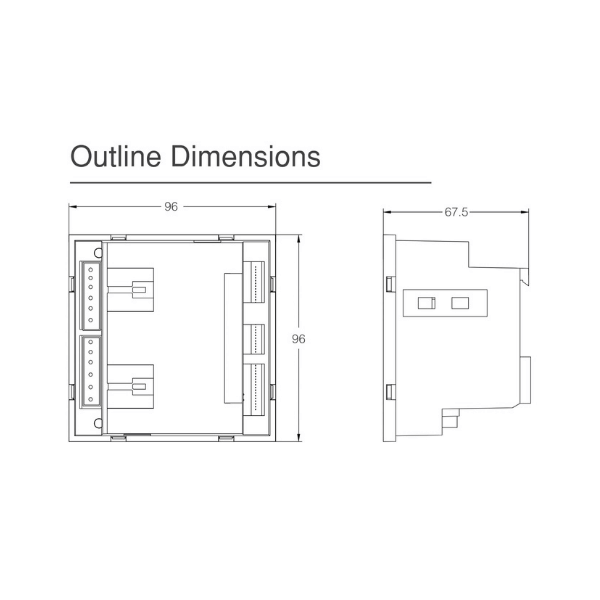

• 🧰 Mounting: Panel mount (standard 96×96 mm)

• 🏅 Certifications: CE, RoHS compliant
