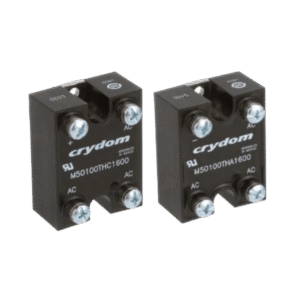

M50100THC1600 & M50100THA1600 Crydom Mexico 100A 1600V Bridge Rectifier (Pair)

Description

📝 Description:
The Crydom M50100THC1600 and M50100THA1600 are industrial-grade bridge rectifier modules designed to handle 100A at 1600V with superior durability and reliability. Supplied as a matched pair, these modules provide efficient AC to DC conversion, ensuring stable performance in generators, UPS systems, motor drives, and heavy-duty industrial equipment. With Crydom’s advanced semiconductor technology and robust design, these rectifiers guarantee high surge current capability, excellent thermal conductivity, and long service life.

📖 Technical Details:

• ⚡ Models: M50100THC1600 & M50100THA1600

• 🏭 Manufacturer: Crydom (Made in Mexico)

• 🔋 Type: Three-Phase Bridge Rectifier Modules (Pair)

• 📈 Maximum Average Forward Current (IF): 100A each

• 🔋 Repetitive Peak Reverse Voltage (VRRM): 1600V

• ⚡ Surge Current (IFSM): > 1200A (typical)

• 🌡️ Operating Temperature: -40°C to +150°C

• 🛠️ Package Style: Isolated, screw terminal connection

• 🔧 Mounting: Panel mount with superior thermal dissipation

• ⚖️ Weight (each): Approx. 450–600 g

• 🏅 Compliance: CE, UL, RoHS certified
