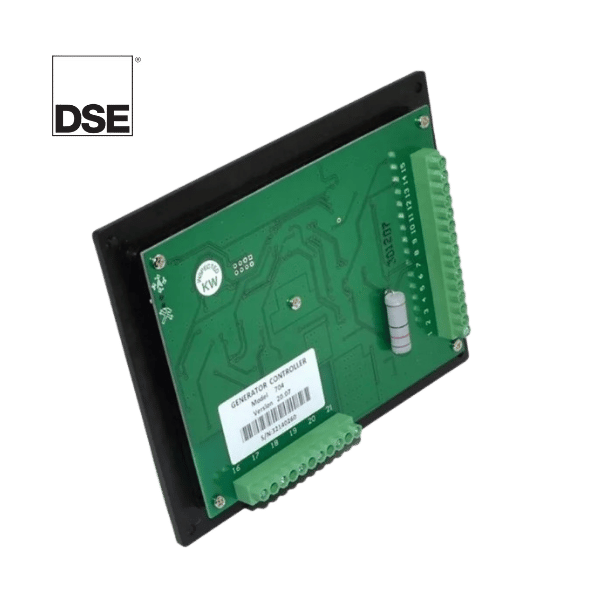

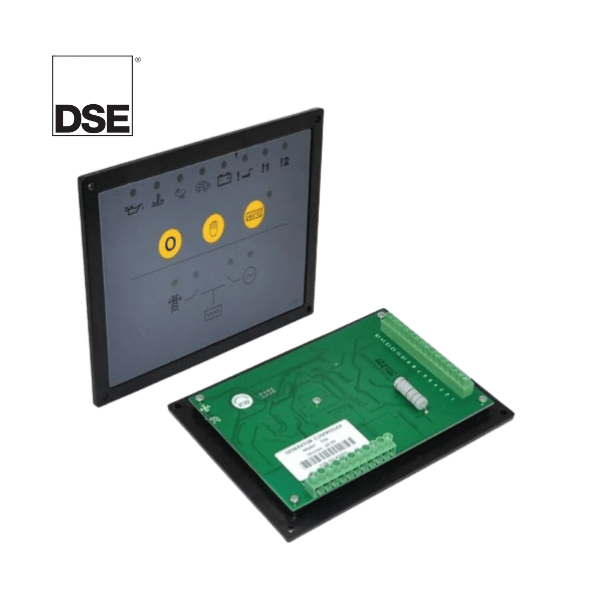

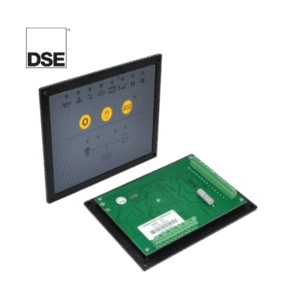

DSE704 AMF (Auto Mains Failure Controller)

Description

• Click Here To Download DSE704 User Manual

  📝 Description:
  The DSE704 AMF Controller is a compact and reliable Auto Mains (Utility) Failure control module designed for a wide range of diesel and gas generator applications. It provides automatic mains monitoring, generator start/stop control, and full engine protection, making it a cost-effective solution for standby power systems. Its simple interface and rugged build ensure dependable operation in residential, commercial, and industrial environments.

  📖 Technical Details:

  • ⚡ Model: DSE704

  • 🔄 Function: Auto Mains Failure (AMF) Control Module

  • 🔋 Monitoring: Mains (utility) voltage & frequency, Generator voltage & frequency, Engine parameters (oil pressure, coolant temperature, battery voltage, speed)

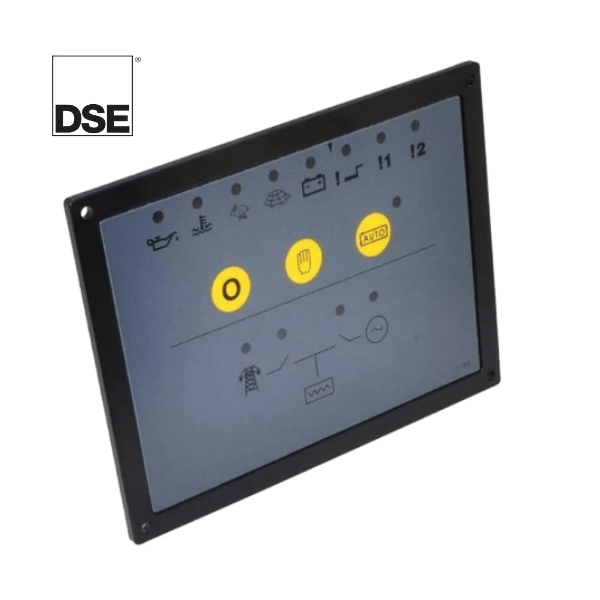

  • 🖥️ Display/Indicators: LED indicators for status, alarms, and faults

  • 🌐 Communication: Basic module (no advanced comms), expansion available on higher models

  • 🛡️ Protections:

    • Over/under voltage

    • Over/under frequency

    • Over/under speed

    • Low oil pressure

    • High coolant temperature

    • Battery charging failure

    • Emergency stop

  • 🔧 Inputs/Outputs: Configurable digital inputs & relay outputs

  • 🔗 Load Transfer: Automatic mains failure detection and genset startup with load transfer

  • 🌡️ Operating Temperature: -30°C to +70°C

  • 📐 Mounting: Panel-mounted, compact design

  • ⚖️ Weight: Approx. 0.8 kg

  • 🏅 Certifications: CE, ISO, RoHS
