DSE6020-MKII Auto Mains Failure (AMF) Unit

Description

• Click Here To Download DSE6020 User Manual

• Click Here To Download DSE6020 Data Sheet

📝 Description:
The DSE6020-MKII is a fully featured Auto Mains (Utility) Failure controller that provides comprehensive generator monitoring, protection, and control. Designed for diesel and gas generator sets, it automatically starts and transfers load to the genset when mains (utility) power fails, and returns load when power is restored. With advanced communication options, flexible I/Os, and enhanced display features, the DSE6020-MKII is ideal for standby and prime power applications in residential, commercial, and industrial environments.

📖 Technical Details:

• ⚡ Model: DSE6020-MKII

• 🔄 Function: Auto Mains Failure (AMF) Controller

• 🔋 Monitoring: Generator voltage, frequency, current, kW, kVA, kVAr, PF, engine parameters (oil pressure, coolant temp, fuel level, speed, battery)

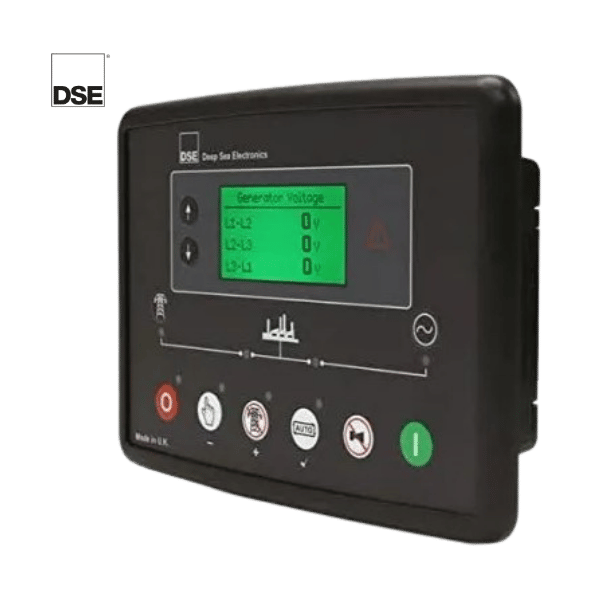

• 🖥️ Display: High-resolution LCD display with real-time parameters, icons & text

• 🌐 Communication: USB, RS232, RS485, MODBUS, CANBUS, Ethernet (optional), GSM/GPRS (optional for remote monitoring)

• 🛡️ Protections:

  • Over/Under voltage

  • Over/Under frequency

  • Over-current & short circuit

  • Overload protection

  • Low oil pressure

  • High coolant temperature

  • Battery low/high voltage

  • Emergency stop

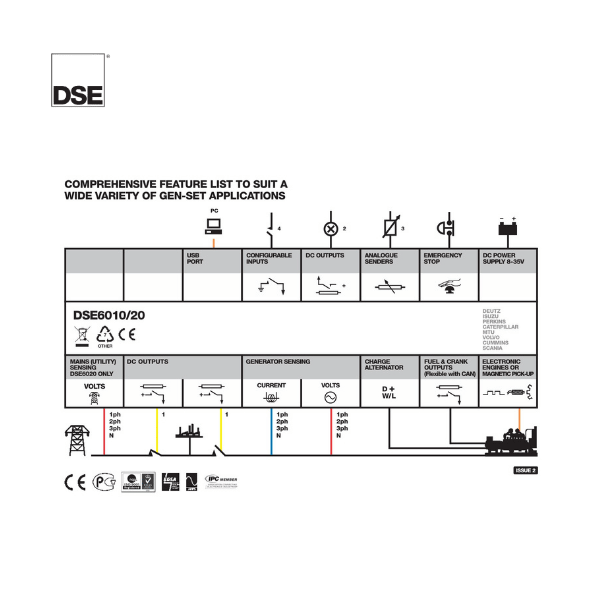

• 🔧 Inputs/Outputs: Multiple configurable digital/analog I/Os

• 🔗 Load Transfer: Automatic switching between mains & genset supply

• 🌡️ Operating Temperature: -30°C to +70°C

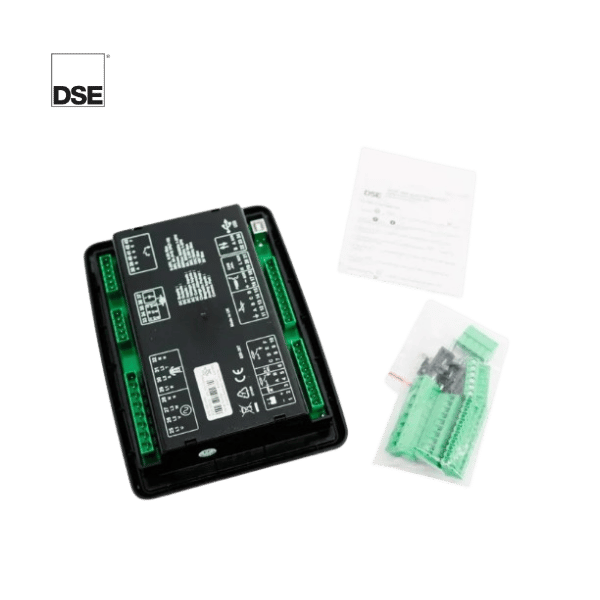

• 📐 Mounting: Panel-mounted compact controller

• ⚖️ Weight: Approx. 1.5 kg

• 🏅 Certifications: CE, UL, ISO, RoHS
