DKM405 Network Analyzer with Total Harmonic Distortion (THD) Display

Description

• Click Here To Download DKM405 User Manual

  📝 Description:
  The DKM405 is a digital network analyzer designed for precise monitoring of electrical parameters in 3-phase systems. It features an integrated Total Harmonic Distortion (THD) display, enabling users to monitor power quality in addition to standard electrical measurements. With its True RMS accuracy, multi-parameter monitoring, and compact panel-mounted design, the DKM405 is an excellent solution for generator panels, switchgear, and industrial energy management systems.

  📖 Technical Details:

  • ⚡ Model: DKM405

  • 🔋 Type: Network Analyzer with THD monitoring

  • 📊 Measured Parameters:

    • Phase & line voltages (True RMS)

    • Phase & line currents

    • Active, reactive, and apparent power

    • Power factor (per phase & total)

    • Frequency (Hz)

    • Energy (kWh, kVArh)

    • Total Harmonic Distortion (THD) for voltage & current

  • ⚡ Voltage Input Range: 50–500V AC (3-phase)

  • 🔋 Current Input: via external CT (1A/5A selectable)

  • 🎚️ Frequency Range: 45–65 Hz

  • 📈 Accuracy: Voltage/Current ±0.5%, Frequency ±0.1 Hz

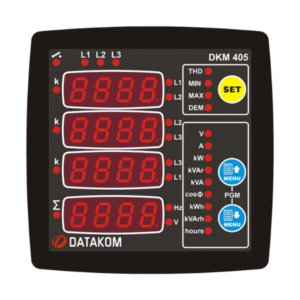

  • 🔧 Display: High-contrast LED/LCD digital display

  • 🛠️ Auxiliary Power Supply: 85–270V AC/DC

  • 🌡️ Operating Temperature: -20°C to +70°C

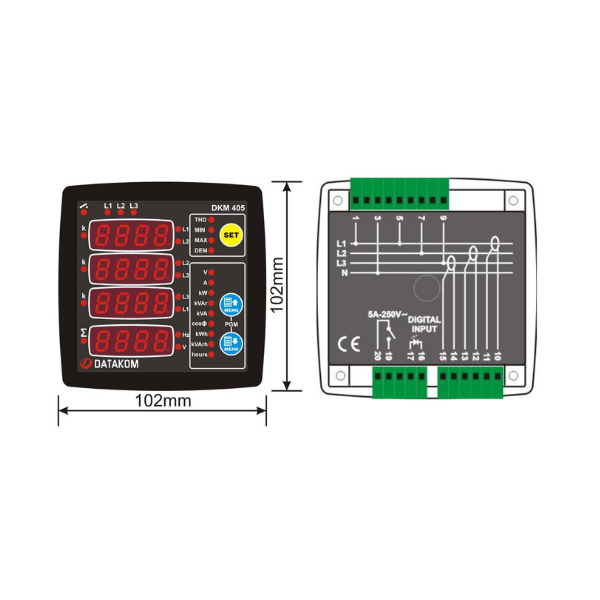

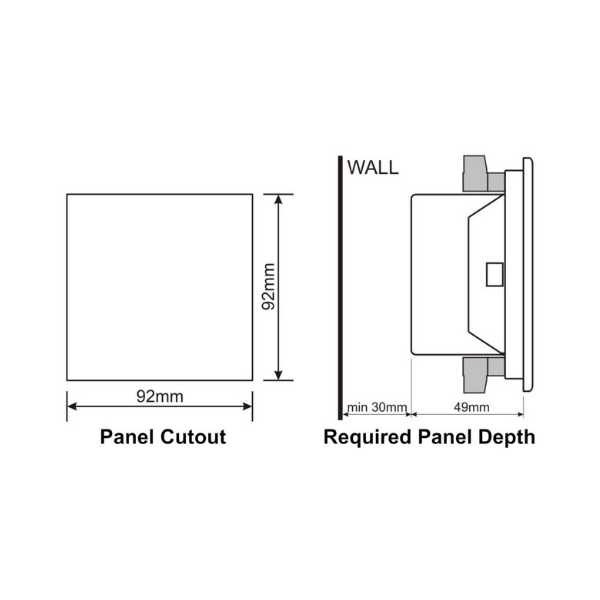

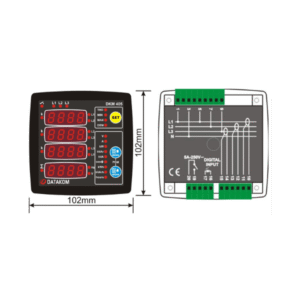

  • 🧰 Mounting: Panel mount (standard 96×96 mm)

  • 🏅 Certifications: CE, RoHS compliant
