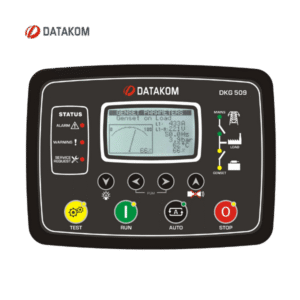

DKG509 Automatic Mains Failure (AMF) Unit

Description

• Click Here To Download DKG509 User Manual

📝 Description:
The DKG509 AMF Unit is a high-performance Automatic Mains Failure controller designed for diesel and gas generator sets. It automatically monitors the mains (utility) supply and initiates the generator start sequence in case of a power outage. With advanced monitoring, programmable I/Os, communication capabilities, and robust protection features, the DKG509 ensures seamless power transfer, system safety, and operational reliability.

📖 Technical Details:

• ⚡ Model: DKG509

• 🔄 Function: Automatic Mains Failure Controller

• 🔋 Monitoring:

  • Generator: Voltage, frequency, current, kW, kVA, PF, run hours

  • Engine: Oil pressure, coolant temperature, speed, fuel level, battery voltage

  • Utility/Mains: Voltage, frequency, phase sequence

• 🖥️ Display: High-contrast LCD with icons & event history

• 🌐 Communication: RS232, RS485, MODBUS, USB (Ethernet/GSM options)

• 🛡️ Protections:

  • Under/Over voltage (genset & mains)

  • Under/Over frequency

  • Overload & over-current

  • Short-circuit protection

  • Engine protections (low oil, high temp, overspeed, underspeed)

  • Battery low/high voltage

  • Emergency stop function

• 🔧 Inputs/Outputs: Configurable digital & analog I/Os

• 🔗 Load Transfer: Seamless mains-to-generator switching & back transfer

• 🌡️ Operating Temperature: -30°C to +70°C

• 📐 Mounting: Panel-mounted design

• ⚖️ Weight: Approx. 1.5 kg

• 🏅 Certifications: CE, ISO, RoHS
